Pioneer TS-WX140DA Class-D Active Underseat Subwoofer | Digital Bass Control

Upgrade your car’s bass performance without sacrificing space with the Pioneer TS-WX140DA Active Underseat Subwoofer. Designed for compact installations, this powerful subwoofer fits neatly under your seat while delivering deep, punchy bass that enhances your overall listening experience.

Equipped with a built-in 170W Class-D amplifier and integrated DSP, the TS-WX140DA ensures efficient power usage, low heat generation, and clean bass output—even in tight spaces. It’s the perfect solution for modern cars and EVs where space and efficiency matter most.

🔊 Key Features

✔ Compact Underseat Design – Ultra-slim profile allows installation under seats or in tight spaces without compromising cabin space

✔ Built-in 170W Class-D Amplifier – Efficient and powerful bass output with minimal power consumption

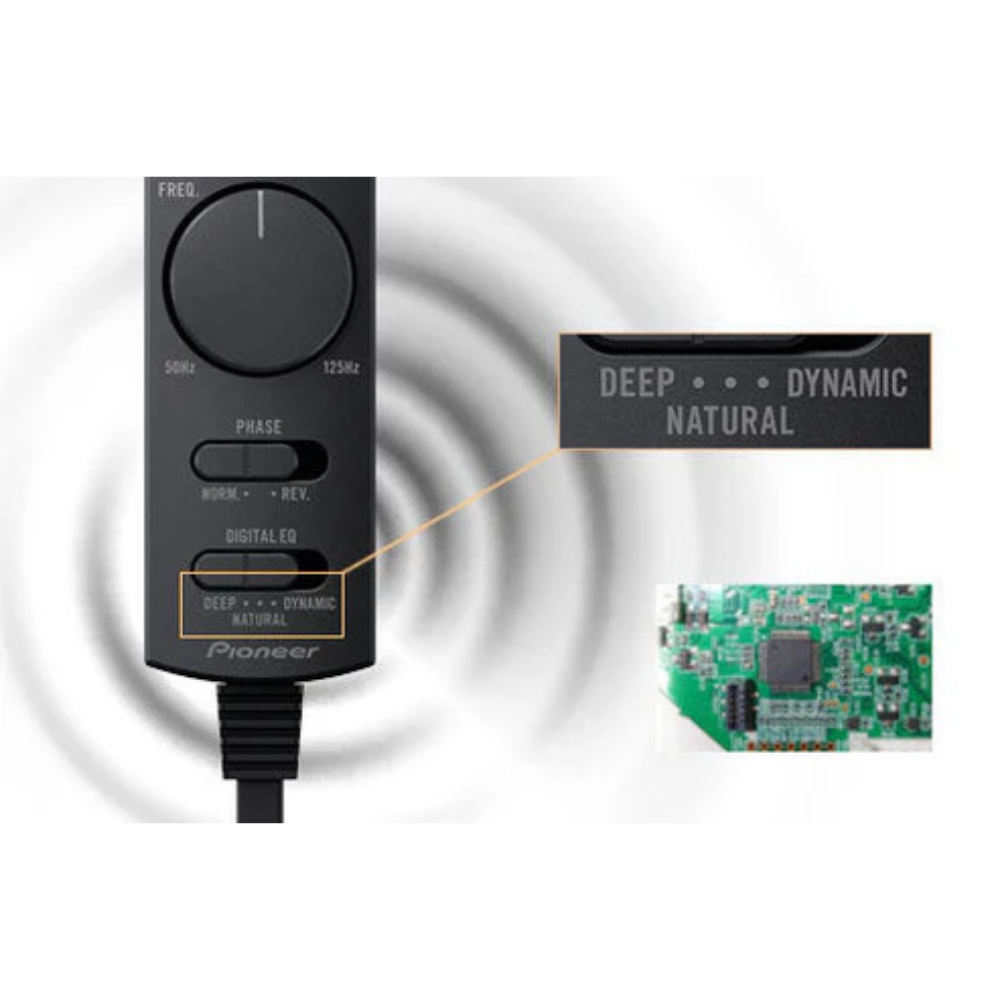

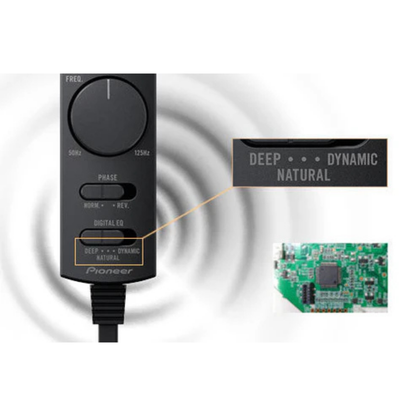

✔ Integrated DSP with 3 Bass Modes – Choose between:

• Deep Mode – Rich, low-end bass
• Natural Mode – Balanced and smooth bass
• Dynamic Mode – Punchy and aggressive bass

✔ Digital Bass Control – Fine-tune bass response according to your music and vehicle acoustics

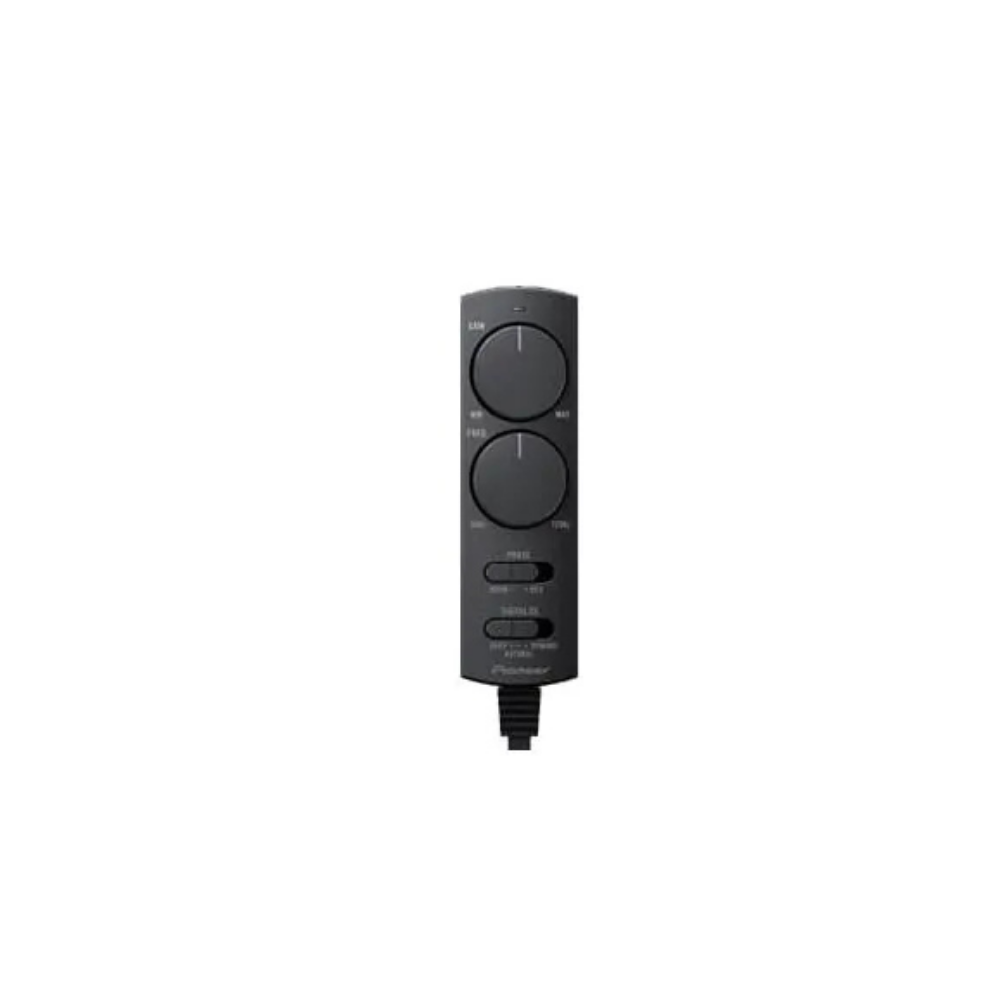

✔ Wired Remote Bass Controller – Easily adjust gain, crossover, and bass levels from the driver seat

✔ Aluminium Rectangular Cone Woofer – High rigidity design for accurate and distortion-free bass reproduction

✔ Low Power Consumption (EV Friendly) – Efficient operation ensures minimal load on vehicle battery

✔ High & Low Level Inputs – Compatible with both OEM and aftermarket stereos

🔧 Technical Specifications

• Type: Active Underseat Subwoofer
• Amplifier: Built-in Class-D
• Max Power: 170W
• RMS Power: 50W
• Woofer Size: 8″ × 5.25″ Rectangular
• Frequency Response: 20Hz – 200Hz (mode dependent)
• Sensitivity: Up to 100 dB
• Power Supply: 12V DC
• Current Consumption: ~4.3A (efficient design)
• Dimensions: Approx. 280 × 200 × 70 mm

📦 Package Includes

• 1 × Pioneer TS-WX140DA Active Subwoofer
• Wired Bass Remote Controller
• Wiring Harness
• Mounting Accessories
• User Manual

🚗 Why Choose Pioneer TS-WX140DA

• Perfect for space-saving bass upgrade
• Ideal for hatchbacks, sedans, SUVs & EVs
• No need for bulky subwoofer boxes
• Clean, tight bass with low distortion
• Easy installation with plug & play compatibility

🛠 Installation Notes

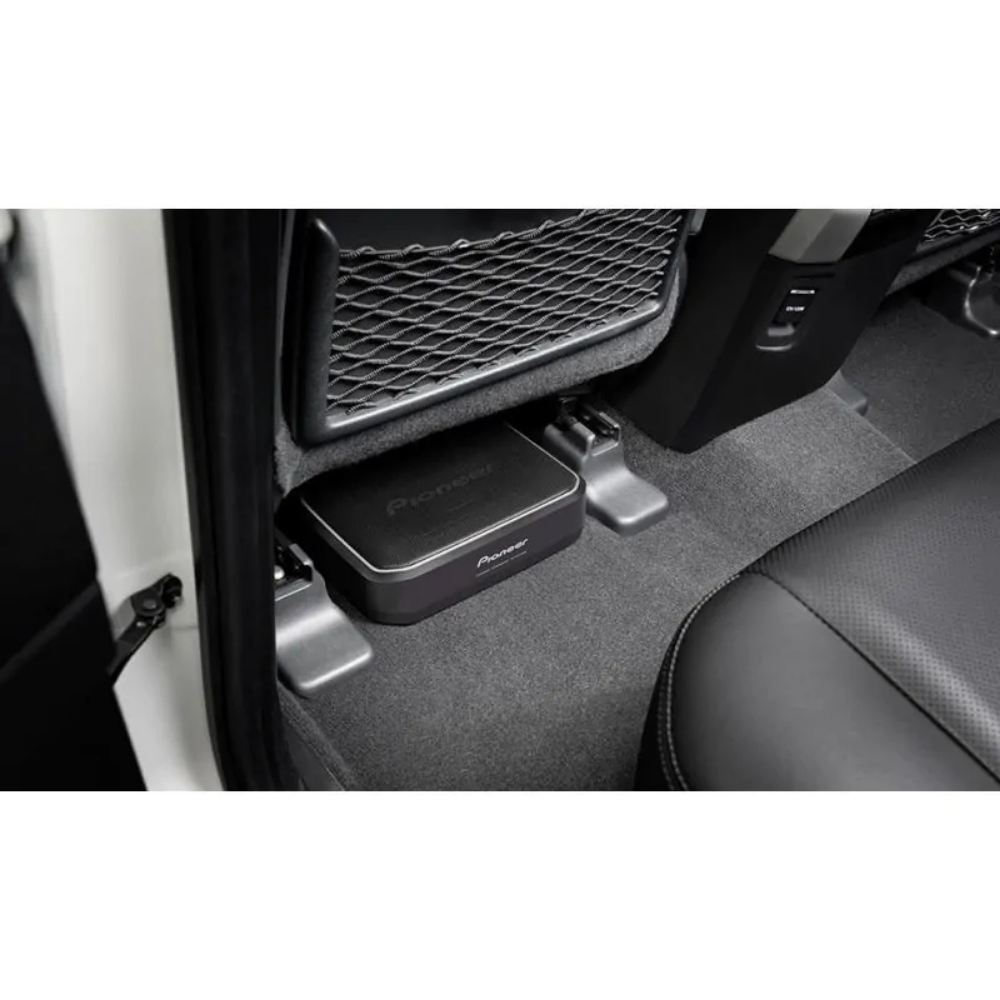

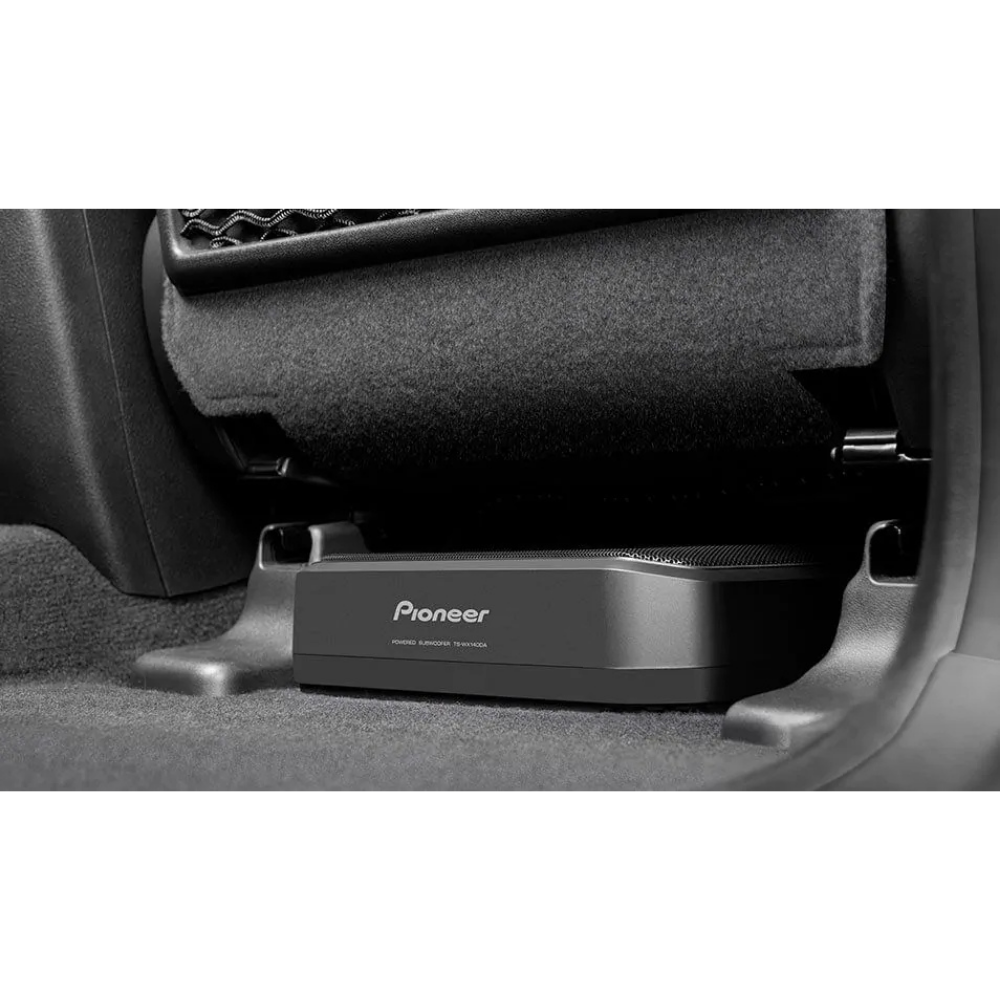

• Best installed under front seat for optimal bass response
• Works with both factory and aftermarket stereos
• Professional installation recommended for tuning & wiring
